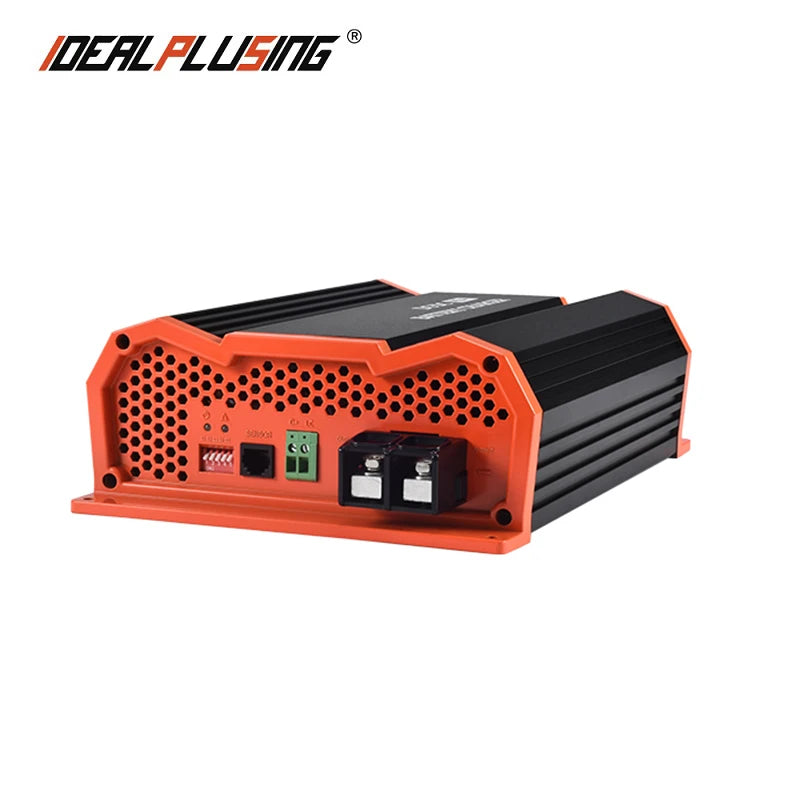

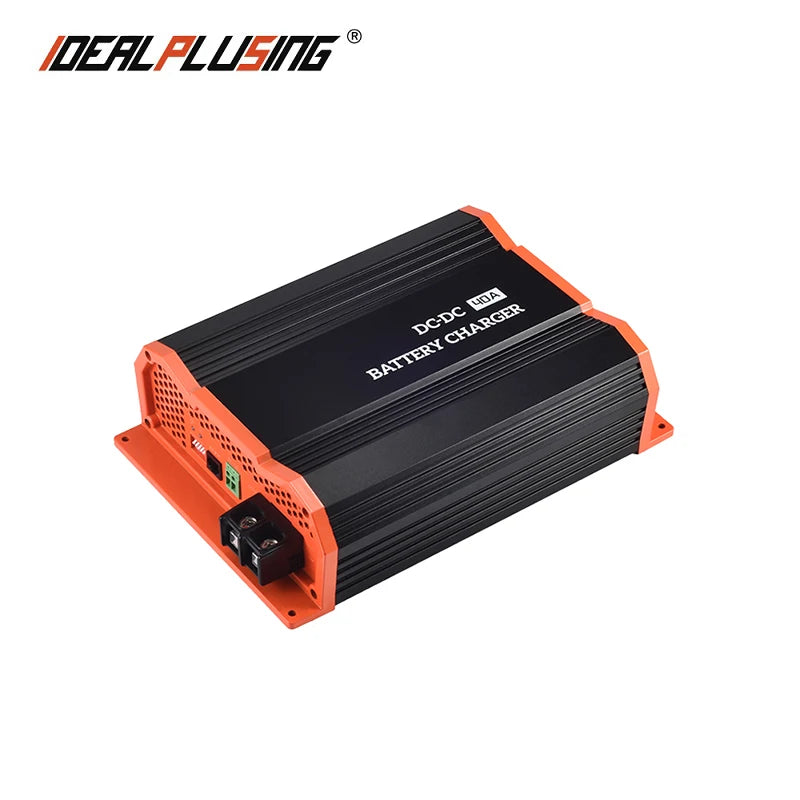

Dc Dc Charger 12v to 12v 20a 40a 60a Lead-acid/Lithium/lifepo4 Batteries Can Be Switched Between Each Other For Rv charing
Dc Dc Charger 12v to 12v 20a 40a 60a Lead-acid/Lithium/lifepo4 Batteries Can Be Switched Between Each Other For Rv charing
SPECIFICATIONS
Brand Name: NONE
Certification: CE,RoHS
Color: Sliver
Email: converter@idealplusing.com
High-concerned chemical: none
Input range volate: 10-16VDC
Input volate: 12VDC
Model Number: IPS-DTDC12S12.6204060
Origin: Mainland China
Output Current: 20A 30A 40A
Output Frequency: /
Output Power: 252-756W
Output Type: SINGLE
Output volate: 12.6VDC,14.6VDC,14.7VDC
Size: L215*W175*H70(MM)
Type: DC/DC Converters
Wechat: 15918646947
Weight: 3KG
Whatsapp: +86 15918646947
is_customized: Yes
I. INTRODUCTION
1 |
DC-DC series battery charger is the most effective way to charge auxiliary or household batteries from alternator/starter batteries. |
2 |
DC-DC is compatible with a variety of alternator types and provides the correct charging for AGM, immersion, gel even deep circulating batteries. |
3 |
With a three-level charger and a variety of electronic protection, car owners can be sure that their batteries are charging automatically in the best way. |
4 |

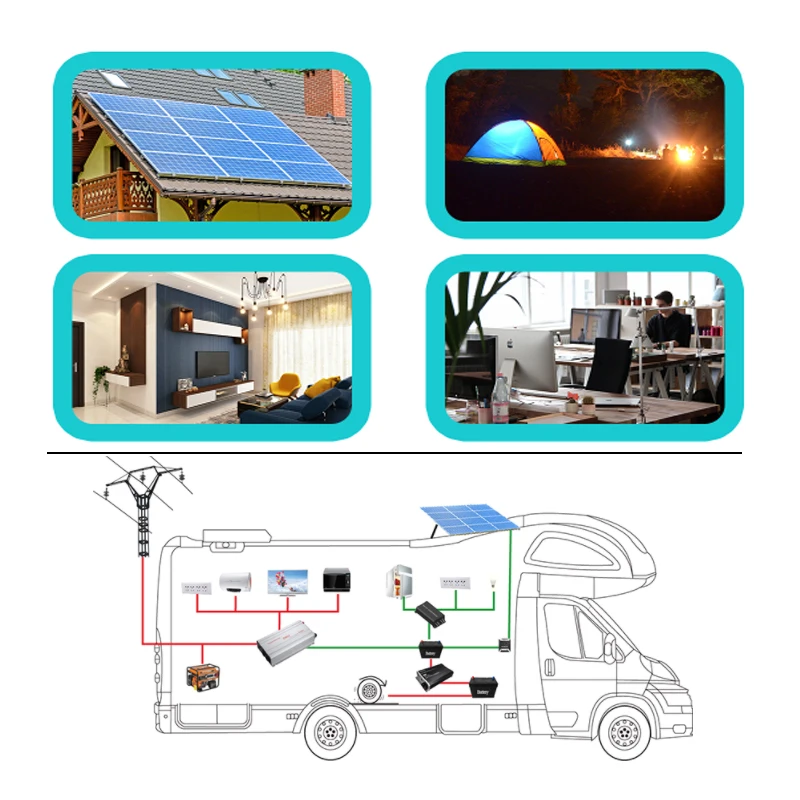

Compact and rugged vehicles can be easily installed on RVs, commercial vehicles, ships, yachts, and more. |
II. KEY FEATURE
1 |
compatible with a variety of 12V batteries: AGM, flood cell, gel battery, and lithium battery. |
2 |

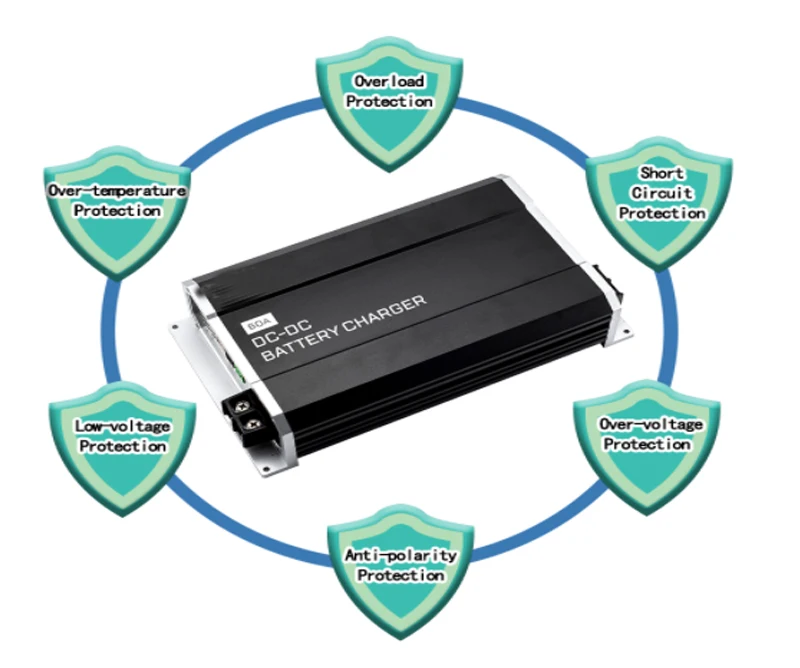

Intelligent protection functions include overvoltage, ultra temperature, and reverse polarity. |
3 |

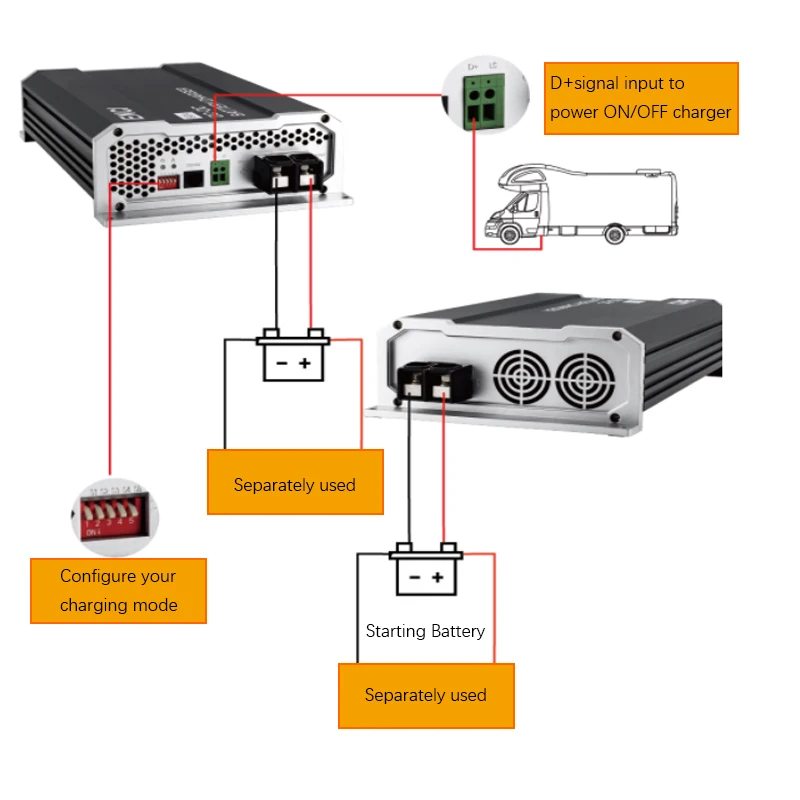

It integrates battery isolation and battery charger |
4 |
Compact structure, but strong under all conditions |
5 |

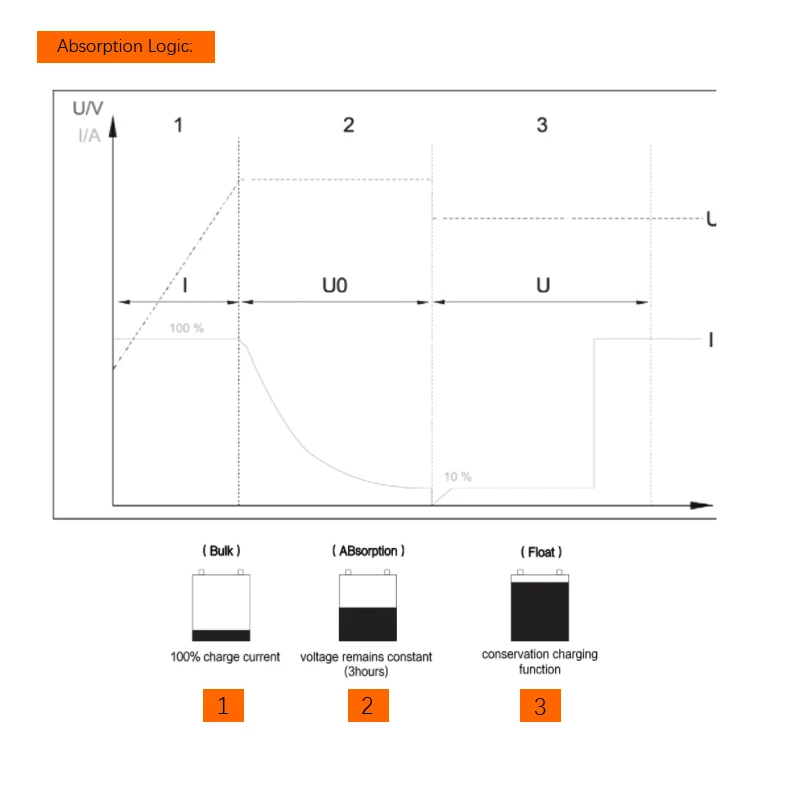

The 3-level battery charger makes your battery power reach 100%. |
III. MAIN SPECIFICATION
Brand |
IDEALPLUSING |
|||||
Model |
IPS-DTDC12S1220 |
IPS-DTDC12S1240 |
IPS-DTDC12S1260 |
|||
Rate input voltage |
12VDC |
|||||
Input voltage range |
8-16VDC |
|||||
Rated charging current |
20A |
40A |
60A |
|||
Max rated output power |
240W |
480W |
720W |
|||
|
Residual ripple of output voltage at rated current |
≤50mV@20A |
≤50mV@40A |
≤50mV@60A |
|||
Charging voltage range |
13.2VDC~14.7VDC depending on DIP switch |
|||||
Apply Battery type |
Lithium(3S) |
12.6VDC |
||||
Apply Battery type |
LiFePO4(4S) |
14.6VDC |
||||
Apply Battery type |
lead Acid(1S) |
14.7VDC |
||||
Efficiency |
≤90% |
|||||
Idle power consumption |
≤0.4A |
|||||
Operational temperature |
-20°C~+50°C |
|||||
Humidity |
<95% Non-condensing |
|||||

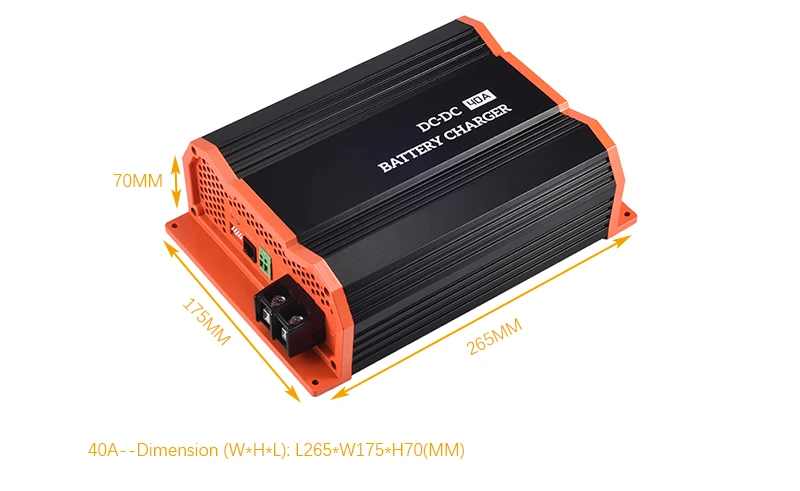

Dimension (W*H*L) |
L215*W175*H70(MM) |
L265*W175*H70(MM) |
L315*W157*H70(MM) |
|||
Net Weight |
1. 4KG |
1. 9KG |
2. 4KG |
|||
Gross Weight |
1.8KG |
2.3KG |
2.8KG |
|||
