SPECIFICATIONS

Brand Name: Heltec Automation

Flexible Solar Panel: Yes

Foldable Solar Panel: Yes

High-concerned chemical: none

Material: Amorphous Silicon

Max. Power: 1.35W

Number of Panels: 1

Origin: Mainland China

Size: 68*380mm

Type: Solar Panel

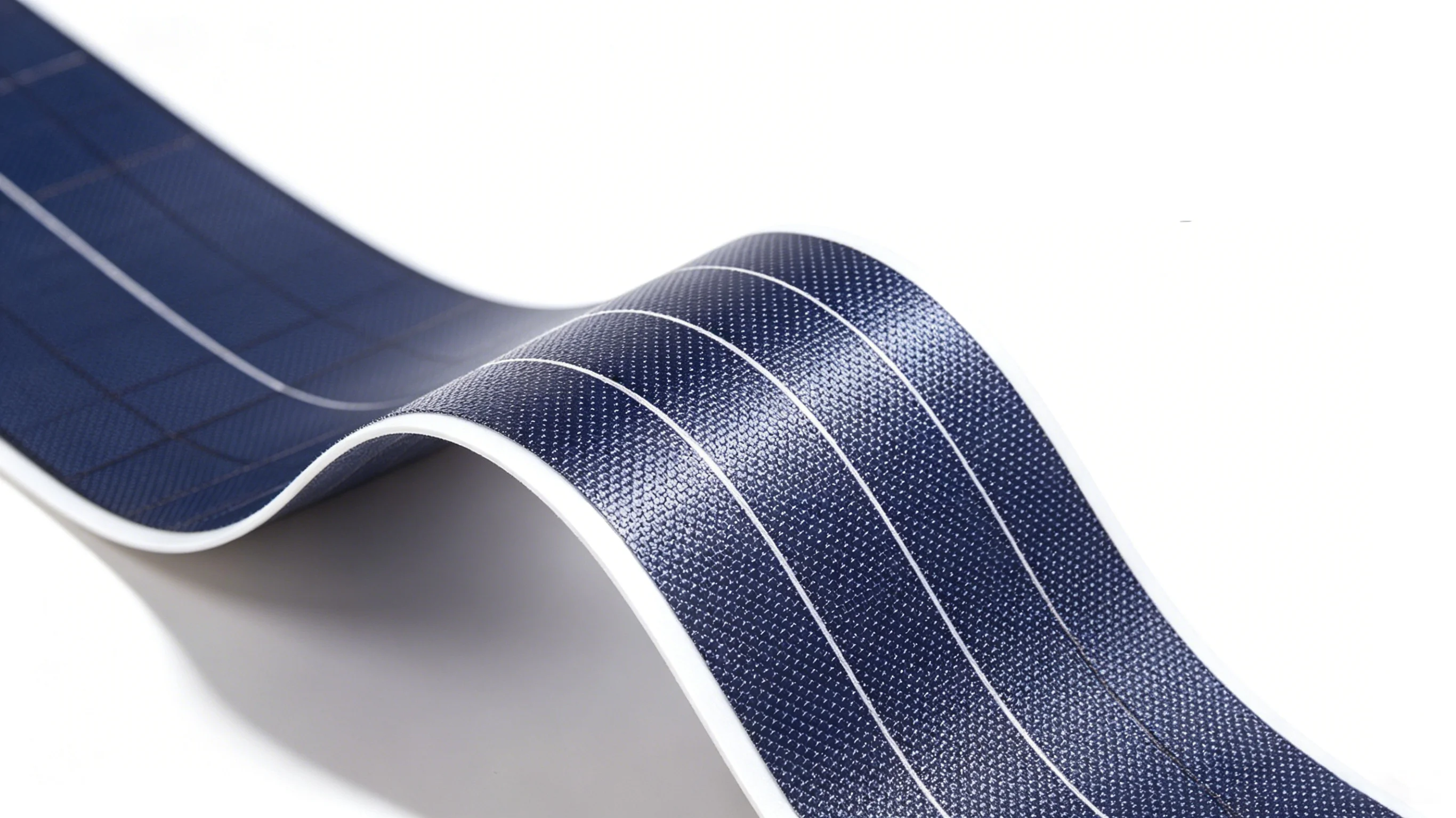

The flexibility of flexible solar panels is one of its major highlights. It adopts a flexible substrate, freeing itself from the hard and brittle constraints of crystalline silicon photovoltaic panels. It can bend and fold, and can fit irregular surfaces such as curved roofs, spacecraft surfaces, and car roofs, expanding its application scenarios and integrating photovoltaics with architectural aesthetics.

It is lightweight, only a fraction of crystalline silicon photovoltaic panels, making it easy to carry during outdoor adventures, disaster relief, and emergency situations. It can quickly deploy power and also help reduce the burden on vehicles such as drones, improving endurance.

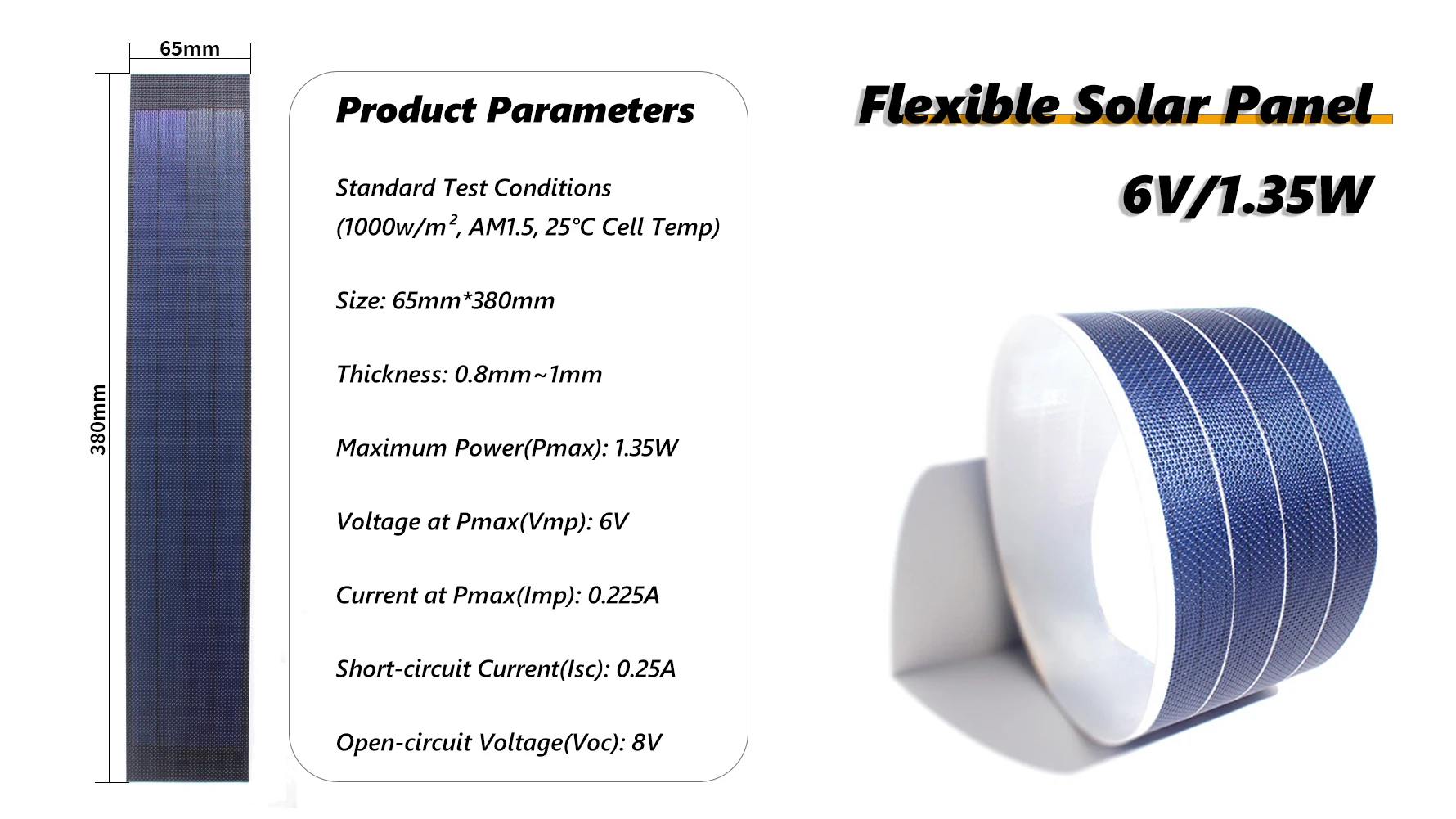

Product Parameters

Standard Test Conditions(1000w/m², AM1.5, 25°C Cell Temp)

Size: 65mm*380mm

Thickness: 0.8mm~1mm

Maximum Power(Pmax): 1.35W

Voltage at Pmax(Vmp): 6V

Current at Pmax(Imp): 0.225A

Short-circuit Current(lsc): 0.25A

Open-circuit Voltage(Voc): 8V
